Stepper Driver integrated with the CNC Motion Controller TD4-NCH02

Product pictures

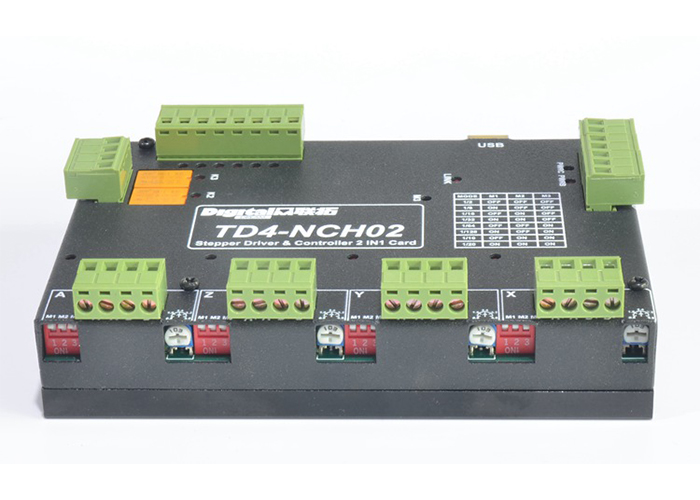

  • Stepper Driver integrated with the CNC Motion Controller TD4-NCH02

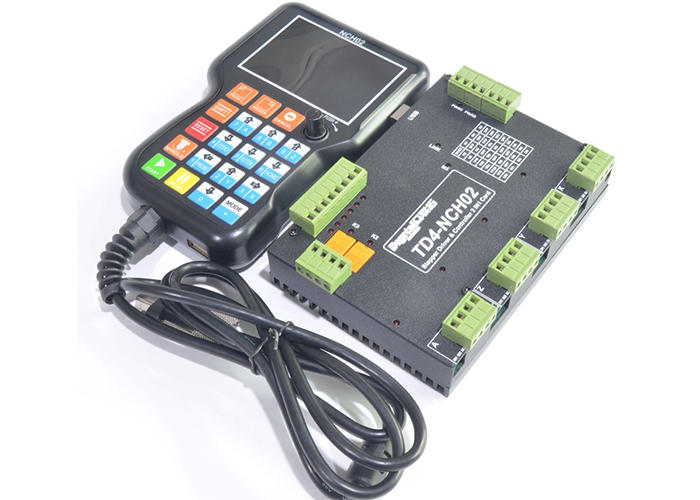

  • Stepper Driver integrated with the CNC Motion Controller TD4-NCH02

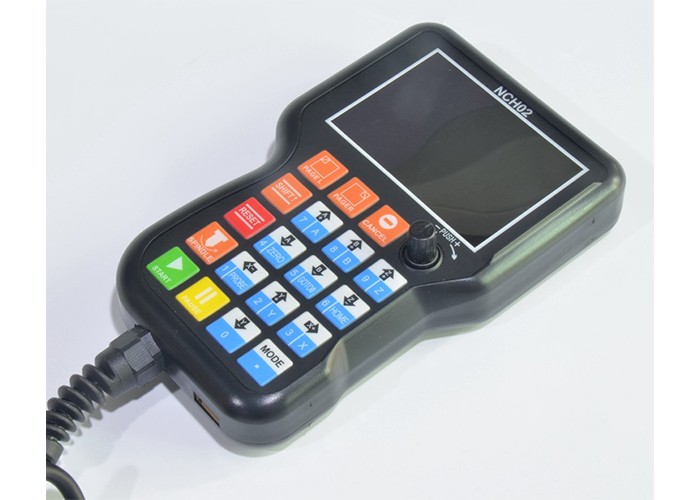

  • Stepper Driver integrated with the CNC Motion Controller TD4-NCH02
Stepper Driver integrated with the CNC Motion Controller TD4-NCH02 Stepper Driver integrated with the CNC Motion Controller TD4-NCH02 Stepper Driver integrated with the CNC Motion Controller TD4-NCH02

Product configuration

Main parameter

Stepper Driver integrated with the CNC Motion Controller

TD4-NCH02

1) 4 axis stepper driver integrated with the motion controller

2) Max. signal output frequency per axis: 150Khz;

3) Max. Current of each axis stepper driver: 4A;

4) Microstep of each axis stepper driver:128;

5) Control mode: Mach3 software and standalone control system for optional;

6) Input ports:6;Output ports:3;

7) Analog spindle control 0-10V spindle control;

8) USB communication mode;

9) USB flash disk support for G code file input,no size limited of the G-code file.

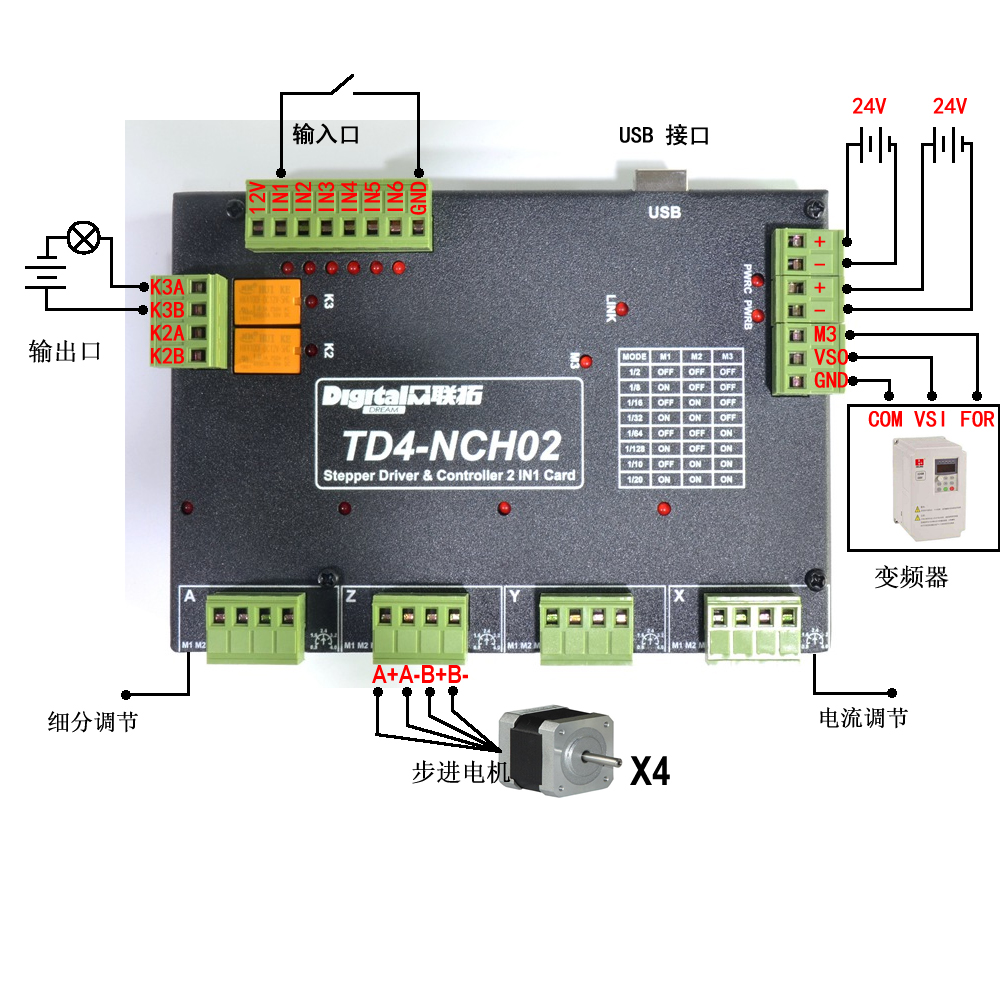

Wiring diagram
