NVCM Mach3 Controller

Product pictures

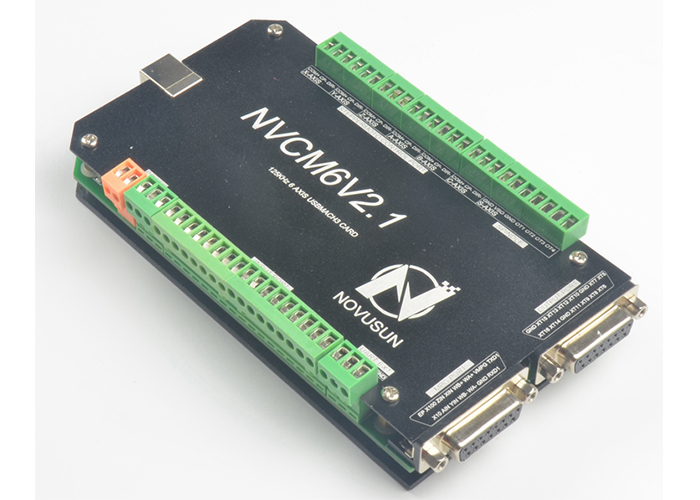

  • NVCM Mach3 Controller

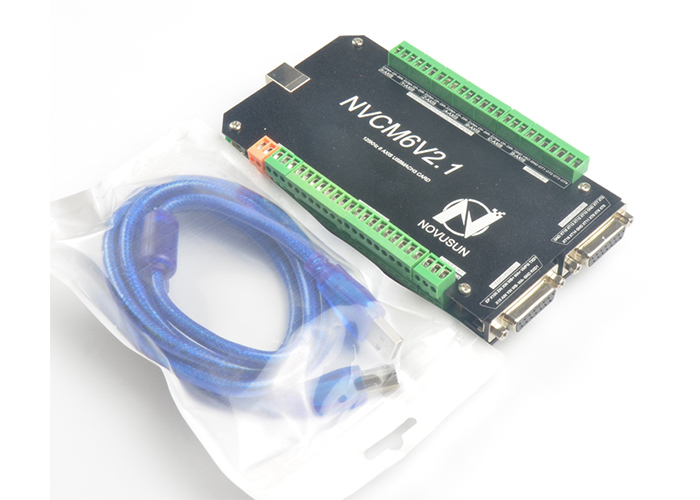

  • NVCM Mach3 Controller

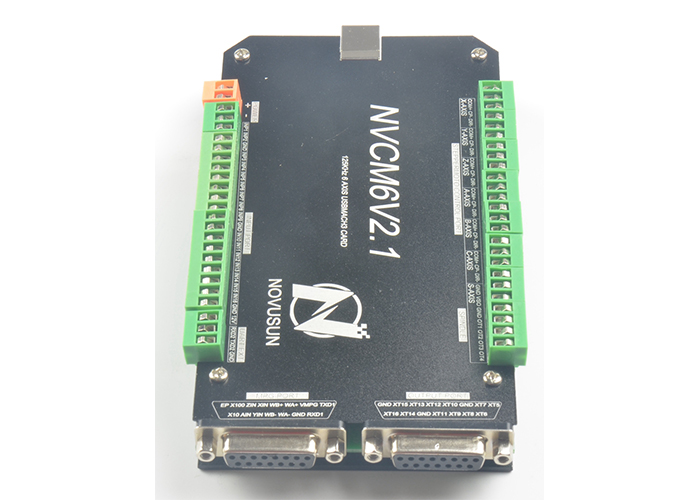

  • NVCM Mach3 Controller
NVCM Mach3 Controller NVCM Mach3 Controller NVCM Mach3 Controller

Product configuration

Main parameter

1) Motion control 3-6 Axis(X,Y,Z,A,B,C) for option,max frequency output 150Khz/Axis;

2) USB Communication with Mach 3 Software;

3) Main power supply 24VDC,Current should higher than 1A;

4) IO Power is 24VDC power supply input,current should higher than 1A(The controller already supply the power for IO port,no need the external power supply for IO port anymore);

5) 12 opto-isolated digital input ports,10 opto-isolated digital output ports;

6) 1 analog output port of 0-10V adjustable speed for spindle (can change to PWM output port);

7) ARM motion control chip;

8) Compatible with Standard MPG and also Digital Dream MPG.

Wiring diagram
